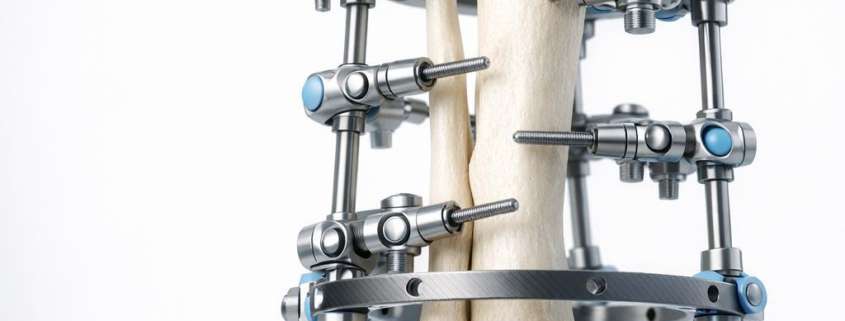

Understanding the Biomechanical Principles of External Fixation

High-Yield Summary

• External fixation stabilizes fractures by applying controlled mechanical forces through percutaneous pins connected externally, optimizing fracture healing while minimizing soft tissue disruption.
• Frame stiffness depends on pin number, pin diameter, pin-bone interfaceand frame configuration; understanding load-sharing and load-bearing principles is essential for construct durability.
• Biomechanical stability is influenced by pin placement relative to fracture, pin spreadand distance from bone; improper technique increases risk of pin loosening and malalignment.
• Hybrid and circular fixators allow for multiplanar control and gradual deformity correction, critical in complex fractures and limb reconstruction.
• Mastery of biomechanical principles guides frame selection, pin insertionand postoperative management to balance stability with micromotion, promoting optimal callus formation.

Clinical Fundamentals

Relevant Anatomy

The external fixator interfaces primarily with cortical bone via transcutaneous pins or wires. The quality of cortical bone at pin insertion sites-typically diaphyseal regions-affects pin purchase and stability. Surrounding soft tissues, including muscles and neurovascular bundles, must be respected to avoid iatrogenic injury and infection.

Biomechanics

External fixation constructs function by transmitting forces through pins and connecting rods or rings. The system’s stiffness is a function of:

• Pin diameter and number: Larger and more pins increase rigidity.
• Pin-bone interface: Bicortical purchase enhances stability; monocortical pins reduce stiffness.
• Pin spread and distance from fracture: Wider pin spread and closer proximity to the fracture site reduce bending moments.

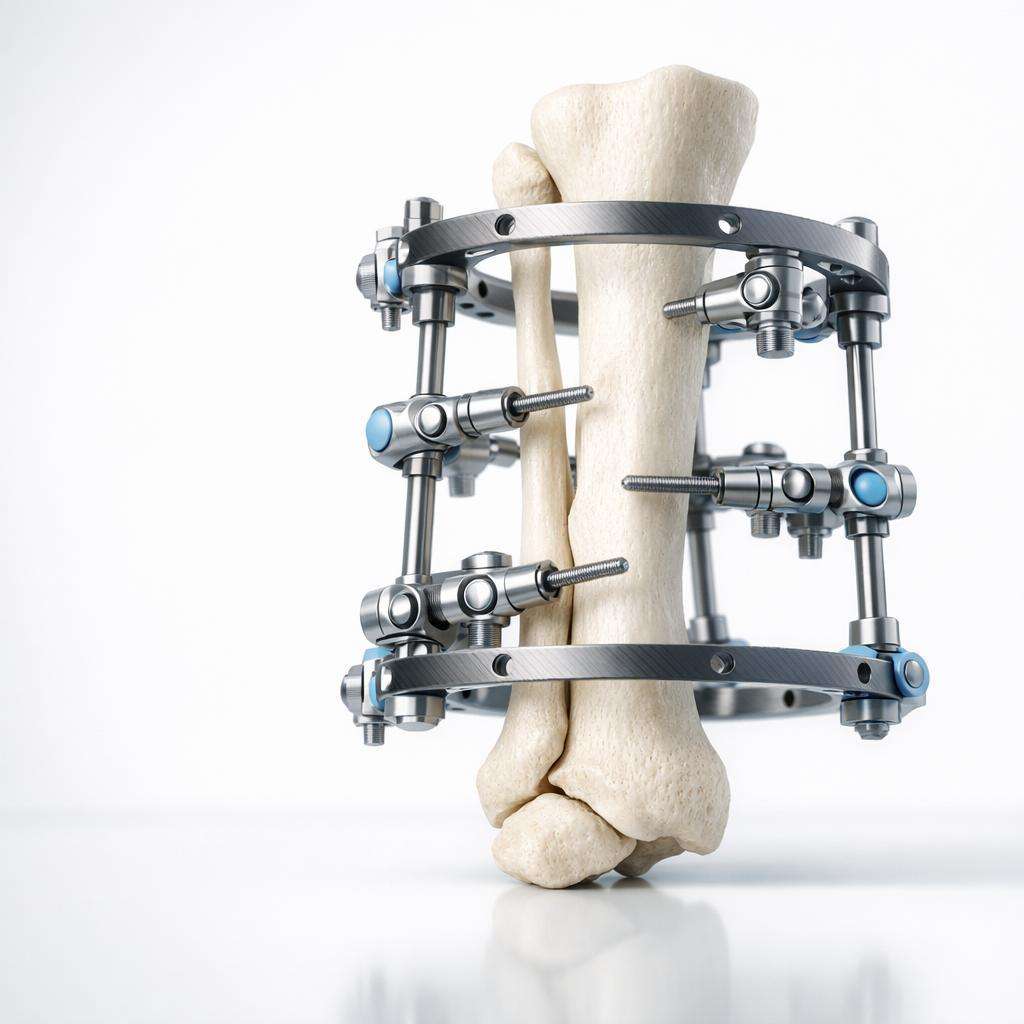

• Frame configuration: Unilateral frames resist bending in one plane; circular frames provide multiplanar stability.

Load-sharing occurs when the fixator and bone share mechanical loads, promoting callus formation through controlled micromotion. Excessive rigidity or instability impairs healing.

Epidemiology

External fixation is indicated in approximately 10-15% of long bone fractures, predominantly in high-energy trauma with soft tissue compromise, open fracturesor when internal fixation is contraindicated. Its use is expanding in limb lengthening and deformity correction.

Classification & Diagnosis

Diagnostic pearls include using fluoroscopy to confirm pin trajectory and avoiding neurovascular structures. CT imaging assists in complex periarticular fractures.

Decision-Making Algorithm

Non-Operative vs. Operative Criteria

Non-operative management is limited to stable, minimally displaced fractures without soft tissue compromise. External fixation is indicated when:

• Soft tissue injury precludes internal fixation (e.g., open fractures Gustilo IIIB/C).
• Temporary stabilization is required before definitive fixation.
• Complex periarticular or segmental fractures require multiplanar control.
• Limb lengthening or deformity correction is planned.

Surgical Approach and Implant Choice

Unilateral fixators are preferred for simple diaphyseal fractures with minimal soft tissue injury. Circular or hybrid frames are selected for:

• Multiplanar deformities.
• Comminuted fractures requiring gradual correction.
• Cases needing weight-bearing during healing.

Pin placement strategy is dictated by fracture location and soft tissue status, balancing biomechanical stability with minimal soft tissue disruption.

Surgical Mastery & Pearls

Step-by-Step Conceptual Overview

1. Preoperative Planning: Analyze fracture pattern, soft tissue statusand biomechanical requirements. Select frame type accordingly.
2. Pin Insertion: Use fluoroscopic guidance; insert pins bicortically with adequate spread and close to fracture site without compromising soft tissues.
3. Frame Assembly: Connect pins with rods or rings ensuring construct stiffness matches biomechanical demands.
4. Frame Adjustment: Confirm alignment intraoperatively; adjust frame tension and pin clamps to optimize stability.
5. Postoperative Management: Monitor pin sites for infection; adjust frame to allow controlled micromotion promoting callus formation.

Intraoperative Red Flags

• Pin placement through neurovascular bundles or joint spaces.
• Insufficient pin spread or monocortical purchase leading to instability.
• Overly rigid constructs that inhibit callus formation.
• Frame misalignment causing malunion.

Technical Tips

• Use hydroxyapatite-coated pins to reduce loosening.
• Maintain pin-bone interface temperature control during drilling to prevent thermal necrosis.
• Employ tensioned wires in circular frames to enhance stability.
• Regularly assess frame stability intraoperatively by manual stress testing.

Evidence-Based Synthesis

Landmark studies demonstrate that biomechanically optimized external fixation improves fracture healing rates and reduces complications. The Ilizarov method’s success in limb reconstruction validated circular fixators for multiplanar stability and gradual deformity correction. Recent randomized trials comparing unilateral to circular frames emphasize the importance of frame selection based on fracture complexity rather than surgeon preference alone.

Meta-analyses reveal that pin diameter and number significantly correlate with construct stiffness and clinical outcomes, but excessive rigidity may delay healing. Emerging data on hydroxyapatite-coated pins show reduced pin tract infections and loosening, though consensus on universal use is pending.

Controversies remain regarding optimal frame stiffness: some evidence supports early dynamization to stimulate callus, while others advocate for maximal initial stability. This reflects evolving understanding of the mechanobiology of fracture healing.

Master Class Pro-Tip

Optimal external fixation demands dynamic intraoperative assessment of construct biomechanics: routinely perform manual stress testing after frame assembly to identify subtle instability. Adjust pin tension and frame configuration iteratively rather than relying solely on preoperative planning. This real-time feedback loop, combined with meticulous pin placement respecting soft tissue envelopes, distinguishes a master surgeon who consistently achieves union with minimal complications.
